SKU: TK0004
Frame Size: The size in which the window or door is produced. That is, the width x height, from one side of the frame to the other.
Opening Size: The size of the hole in the wall. To arrive at the frame size, 2-3 cm should be subtracted from the opening size, to allow space for the seal for the door or window.
Click here to see how you measure for your windows and doors
Choose the material for your window or door. For most of our products you can choose between pinewood or aluminium clad pinewood. For alu/clad products the exterior of the product has a 1 mm alu cladding.
For tilt & turn elements made of wood & wood/aluminium, triple glazing is possible with a frame depth of 92 mm.
Choose the glazing. The options depend on material and model. Read more in the info box (?). Please note that we temporarily do not offer safety glass.
Choose the type of glass which fits the purpose of the window. You can choose between ordinary clear glass and different types of obscure glass.
Choose the opening direction. The opening direction is determined by the side on which the hinges are. Doors can open either inside or outside. If you are unsure which you should choose, you can find further information in the box below.
You can choose decorative foils with graining for your uPVC window. The standard color of the uPVC windows is white RAL 9016.
Choose your glazing bars. The glazing bars are glued on to the glass on the inside and outside of the window, for a modern and energy saving solution. Choose Georgian bars, if you want the glazing bars to sit inside the glass unit. This makes the job of cleaning the windows easier.
Spacers in between the glass panes and glazing bars can be chosen as an add-on.
A "warm edge" spacer improves the insulating qualities of the glass.
Choose threshold
Select your desired hinge type
Mounting brackets for an easy installation.
Select your desired security level, to change to espagnolette in your door/window. these levels adhere to the european standard (EN 1627:2011). To meet security class RC 1 and RC 2 for windows, a lockable handle must also be selected. To increase security, it is also advisable to choose security glass.
We offer vents in white or grey. Our trickle & tryk vents allow fresh air into the room even if the window or the door is closed, thus ensuring a better indoor climate.
The vent is placed in the top frame of the window/doorOn tilt & turn windows the vent is placed in the top sash and is visible on the outsideWindows with more than one sash, will have 1 vent installed.
Choose the right frame height for your new door
The door handle-set has a lever internally or a lever internally and externally. The cylinder locks and handle-roses are factory fitted.
We have 10 year warranty on the complete product for our Wood windows and doors, and we have 12 year warranty on the complete product for our Alu-clad wood windows and doors.
Windows or doors within the dimensions 212 cm width and/or 212 cm height or larger will be delivered with HIAB.
For orders with several big windows or doors, only one HIAB-fee will be charged. Please contact us for adjustment of the order amount
Indicative rates:
Change fixed glazed sash to openable (per sash incl. window hooks) 15 £ - remember to add additional price for any other handle options per compartment)Change openable sash to fixed glazed (per sash) 15 £Extra glazing bar without spacer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 12 £Extra glazing bar with spacer, 2-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 17 £Extra glazing bar with spacer, 3-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 23 £Adding af frame to a fixed frame window 50 £Alignment (per order) 35 £Alignment of bars/transom/mullion (per window/door) 35 £Door panel adjustment (per door) 35£Satin glass (per unit) 20 £Repairment kit 15£ + freight 7£Delivery with HIAB 300 £Change of address 70 £
Spare Parts:
Espagnolette 150 £ + 35 £ freightFriction stay 115 £ + 35 £ freightClips for alu cladding 4 £ per piece + freight 15 £
Sku: TK0004

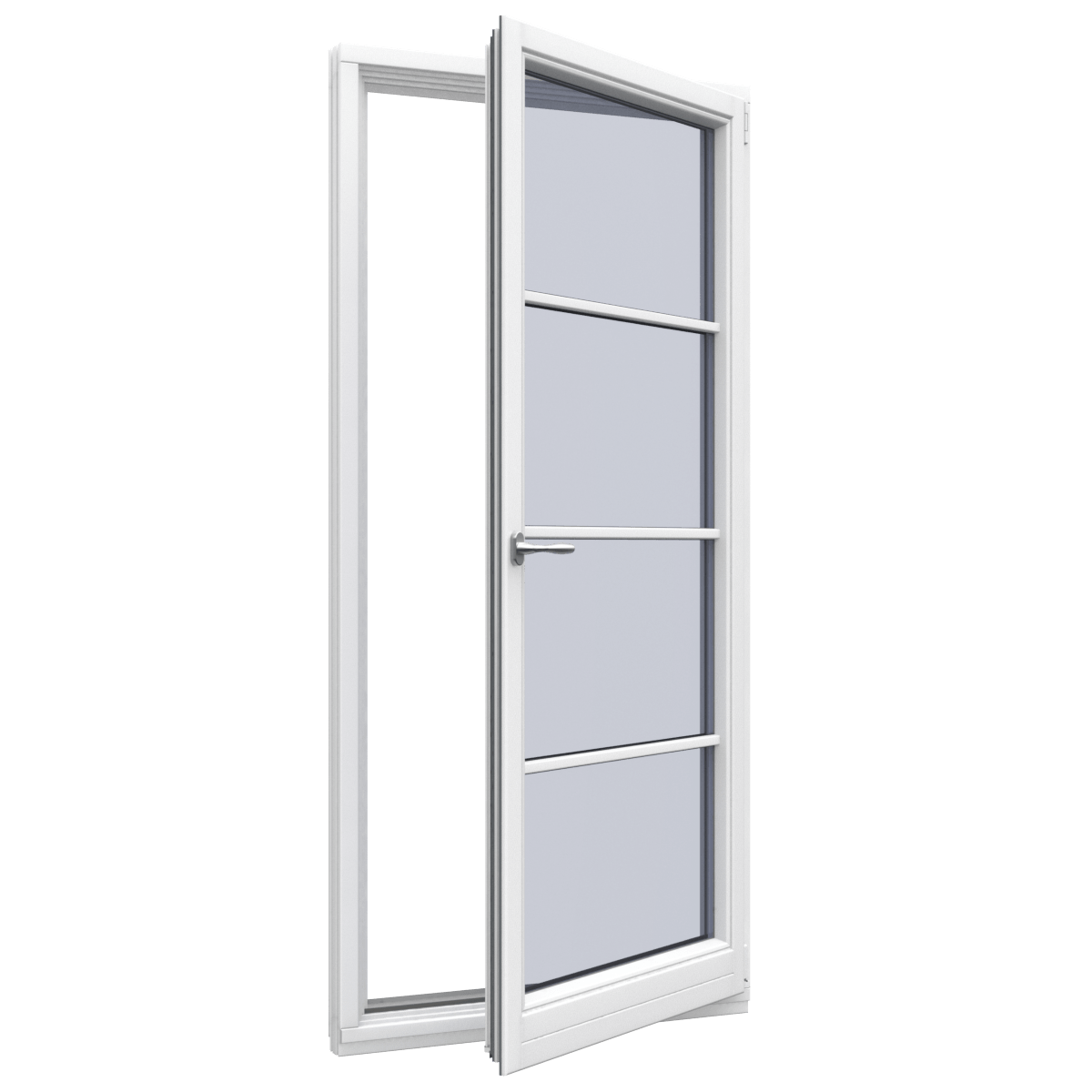

Introducing the Tilt & Turn Balcony Door4 Light, your ultimate solution for bespoke windows and doors made to measure. This innovative product combines style, durability, and functionality to elevate your living space to new heights.Crafted with precision and tailored to your exact specifications, the Tilt & Turn Balcony Door4 Light offers a seamless blend of beauty and performance. Whether you are looking to enhance the aesthetics of your home or increase energy efficiency, this door is designed to meet your needs.With its unique tilt and turn mechanism, this balcony door provides versatility like never before. Easily switch between different modes to control ventilation, access, and security with just a simple twist of the handle. The multi-point locking system ensures peace of mind, keeping your space safe and secure at all times.Made to measure to fit your space perfectly, the Tilt & Turn Balcony Door4 Light is available in a variety of sizes and finishes to complement any design style. Whether you prefer a modern sleek look or a more traditional aesthetic, this door can be customized to suit your preferences.Constructed with high-quality materials, this door is built to last. Its robust design and excellent craftsmanship ensure durability and longevity, making it a wise investment for your home. Say goodbye to ill-fitting doors and hello to a perfectly tailored solution that enhances the beauty and functionality of your space.Upgrade your home with the Tilt & Turn Balcony Door4 Light and experience the difference that bespoke windows and doors made to measure can make. Transform your living space into a haven of comfort, style, and security with this premium product that combines elegance and performance seamlessly. Choose quality, choose functionality, choose style – choose the Tilt & Turn Balcony Door4 Light.
