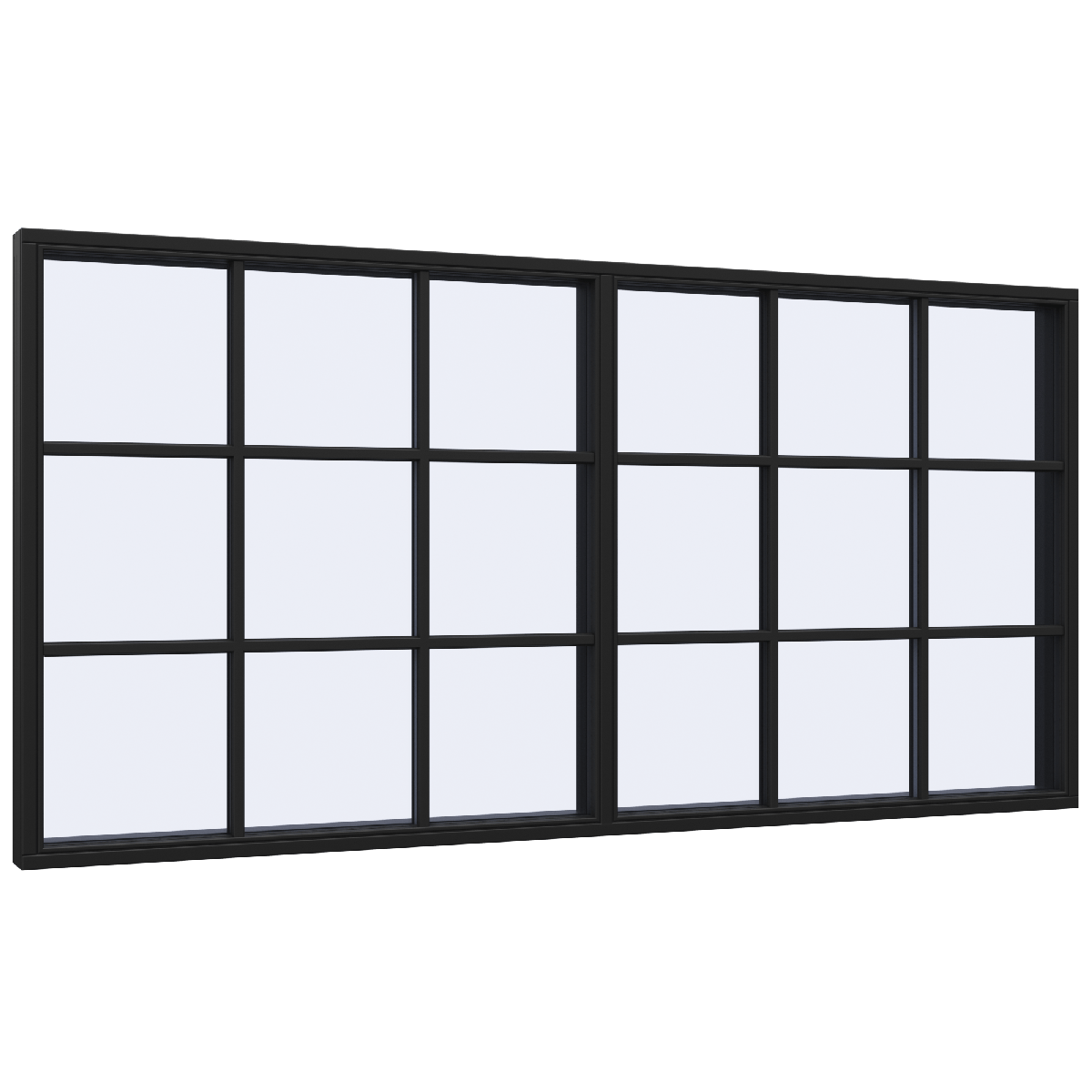

SKU: NY0218
Frame Size: The size in which the window or door is produced. That is, the width x height, from one side of the frame to the other.
Opening Size: The size of the hole in the wall. To arrive at the frame size, 2-3 cm should be subtracted from the opening size, to allow space for the seal for the door or window.
Click here to see how you measure for your windows and doors
Choose the material for your window or door. For most of our products you can choose between pinewood or aluminium clad pinewood. For alu/clad products the exterior of the product has a 1 mm alu cladding.
For tilt & turn elements made of wood & wood/aluminium, triple glazing is possible with a frame depth of 92 mm.
Choose the glazing. The options depend on material and model. Read more in the info box (?). Please note that we temporarily do not offer safety glass.
Choose the type of glass which fits the purpose of the window. You can choose between ordinary clear glass and different types of obscure glass.
Choose the interior colour of your product. If you choose "Special RAL colour" please send an email with the desired RAL color. We only produce four-numbered RAL codes (RAL Classic). For glazes and clear lacquer there can be minor colour differences as the wood is finger jointed.
Choose the exterior colour of your product. If you choose "Special RAL colour" please send an email with the desired RAL color. We only produce four-numbered RAL codes (RAL Classic). Please note that we do not offer 'Special RAL colour' for aluminium cladding. For glazes and clear lacquer there can be minor colour differences as the wood is finger jointed.
Choose your glazing bars. The glazing bars are glued on to the glass on the inside and outside of the window, for a modern and energy saving solution. Choose Georgian bars, if you want the glazing bars to sit inside the glass unit. This makes the job of cleaning the windows easier.
Spacers in between the glass panes and glazing bars can be chosen as an add-on.
A "warm edge" spacer improves the insulating qualities of the glass.
Choose the interior profile for your wooden window. The Softline profile has smooth angles giving your window a modern and stylish look. The Classic profile comes with special frame and casement moulding for a more classical look.
We have 10 year warranty on the complete product for our Wood windows and doors, and we have 12 year warranty on the complete product for our Alu-clad wood windows and doors.
Windows or doors within the dimensions 212 cm width and/or 212 cm height or larger will be delivered with HIAB.
For orders with several big windows or doors, only one HIAB-fee will be charged. Please contact us for adjustment of the order amount
Indicative rates:
Change fixed glazed sash to openable (per sash incl. window hooks) 15 £ - remember to add additional price for any other handle options per compartment)Change openable sash to fixed glazed (per sash) 15 £Extra glazing bar without spacer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 12 £Extra glazing bar with spacer, 2-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 17 £Extra glazing bar with spacer, 3-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 23 £Adding af frame to a fixed frame window 50 £Alignment (per order) 35 £Alignment of bars/transom/mullion (per window/door) 35 £Door panel adjustment (per door) 35£Satin glass (per unit) 20 £Repairment kit 15£ + freight 7£Delivery with HIAB 300 £Change of address 70 £
Spare Parts:
Espagnolette 150 £ + 35 £ freightFriction stay 115 £ + 35 £ freightClips for alu cladding 4 £ per piece + freight 15 £
Sku: NY0218
