SKU: PK0220
Frame Size: The size in which the window or door is produced. That is, the width x height, from one side of the frame to the other.
Opening Size: The size of the hole in the wall. To arrive at the frame size, 2-3 cm should be subtracted from the opening size, to allow space for the seal for the door or window.
Click here to see how you measure for your windows and doors
Choose the material for your window or door. For most of our products you can choose between pinewood or aluminium clad pinewood. For alu/clad products the exterior of the product has a 1 mm alu cladding.
For tilt & turn elements made of wood & wood/aluminium, triple glazing is possible with a frame depth of 92 mm.
Choose the glazing. The options depend on material and model. Read more in the info box (?).
Choose the type of glass which fits the purpose of the window. You can choose between ordinary clear glass and different types of obscure glass.
Building Regulations guidance (Approved Document K): Standard (non-safety) glass may only be used where the bottom edge of the glazing is more than 800 mm above the finished floor level and not within 300 mm of a door opening. Glazing that is below 800 mm; in a door; or within 300 mm of a door edge and below 1500 mm: these must use toughened or laminated safety glass (or be protected by a suitable barrier).
You can choose decorative foils with graining for your uPVC window. The standard color of the uPVC windows is white RAL 9016.
A "warm edge" spacer improves the insulating qualities of the glass.
Choose your desired handle.
For Tilt & Turn products, click on (i) to see the placement of the handle.
For Tilt & Turn balcony doors, please be aware that these are supplied with a single interior handle as a standard. For doors offering a wider range of double-handle options, please visit our Patio and External Doors sections
Select your desired hinge type
Mounting brackets for an easy installation.
Select your desired security level, to change to espagnolette in your door/window. these levels adhere to the european standard (EN 1627:2011). To meet security class RC 1 and RC 2 for windows, a lockable handle must also be selected. To increase security, it is also advisable to choose security glass.
Turn your window into a fire escape with a flying mullion. Read more in the info box.
Our sill connection profile is used when an inner or outer window sill is to be installed. If this profile is used, you may need to subtract the height of the profile from the window dimensions, depending on the installation method.
Windows or doors with dimensions exceeding 210 cm in width or height will be delivered using a HIAB. A HIAB fee of £199 per order will be automatically added to the delivery cost during checkout.
Indicative rates:
Change fixed glazed sash to openable (per sash incl. window hooks) 15 £ - remember to add additional price for any other handle options per compartment)Change openable sash to fixed glazed (per sash) 15 £Extra glazing bar without spacer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 12 £Extra glazing bar with spacer, 2-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 17 £Extra glazing bar with spacer, 3-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 23 £Adding af frame to a fixed frame window 50 £Alignment (per order) 35 £Alignment of bars/transom/mullion (per window/door) 35 £Door panel adjustment (per door) 35£Satin glass (per unit) 20 £Repairment kit 15£ + freight 7£Delivery with HIAB 300 £Change of address 70 £
Spare Parts:
Espagnolette 150 £ + 35 £ freightFriction stay 115 £ + 35 £ freightClips for alu cladding 4 £ per piece + freight 15 £
Sku: PK0220

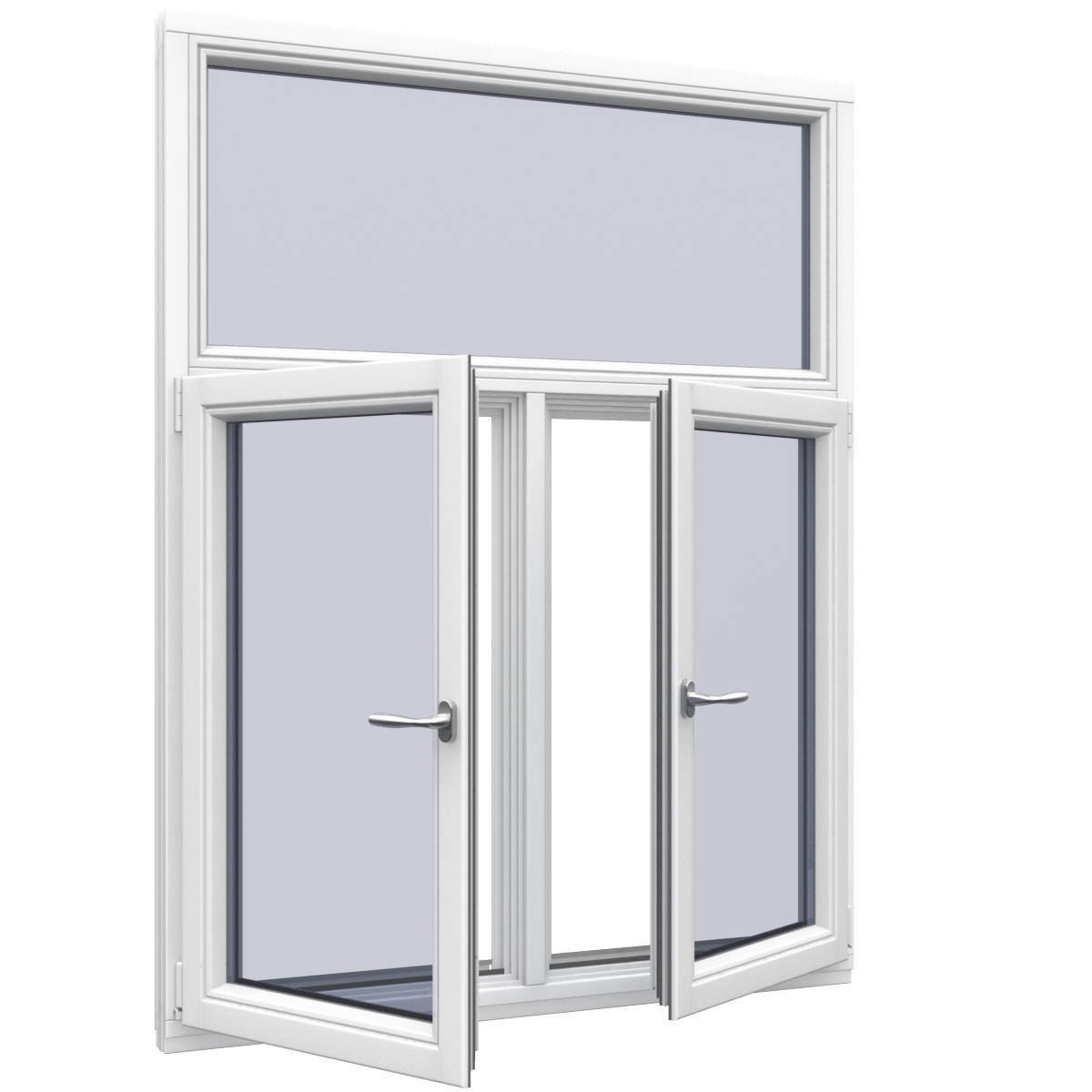

Introducing the Tilt & Turn / Fixed Window 3 Light, with 1 fixed light above, the epitome of elegance and functionality in custom-made windows and doors. This versatile window unit is meticulously crafted to fit your unique space requirements, offering a seamless blend of style and practicality for your home or office.Featuring precision engineering, this bespoke window boasts a tilt and turn function that allows for both inward ventilation and easy cleaning, ensuring convenience and comfort at your fingertips. The 3-light design, with a fixed light positioned above, creates a stunning visual impact while maximizing natural light entry into your living or working area.Crafted by skilled artisans, these made-to-measure windows are tailor-made to your exact specifications, guaranteeing a perfect fit for any architectural frame. Whether you are looking to upgrade your existing space or embarking on a new construction project, the Tilt & Turn / Fixed Window 3 Light is the ideal choice for those seeking superior quality and seamless integration.Constructed with premium materials, these windows are not only aesthetically pleasing but also durable and weather-resistant, ensuring longevity and performance for years to come. Whether you are seeking energy efficiency, sound insulation, or enhanced security, these custom windows deliver on all fronts, providing a superior solution for your space.Embrace the beauty of bespoke design with the Tilt & Turn / Fixed Window 3 Light, a seamless combination of style, innovation, and functionality. Transform your living or working environment with these custom-made windows that are designed to exceed your expectations and elevate your space to new heights of luxury and sophistication. Choose quality, choose style, choose the Tilt & Turn / Fixed Window 3 Light for a window experience like no other.
