SKU: PK0321
Frame Size: The size in which the window or door is produced. That is, the width x height, from one side of the frame to the other.
Opening Size: The size of the hole in the wall. To arrive at the frame size, 2-3 cm should be subtracted from the opening size, to allow space for the seal for the door or window.
Click here to see how you measure for your windows and doors
Choose the material for your window or door. For most of our products you can choose between pinewood or aluminium clad pinewood. For alu/clad products the exterior of the product has a 1 mm alu cladding.
For tilt & turn elements made of wood & wood/aluminium, triple glazing is possible with a frame depth of 92 mm.
Choose the glazing. The options depend on material and model. Read more in the info box (?).
Choose the type of glass which fits the purpose of the window. You can choose between ordinary clear glass and different types of obscure glass.
Building Regulations guidance (Approved Document K): Standard (non-safety) glass may only be used where the bottom edge of the glazing is more than 800 mm above the finished floor level and not within 300 mm of a door opening. Glazing that is below 800 mm; in a door; or within 300 mm of a door edge and below 1500 mm: these must use toughened or laminated safety glass (or be protected by a suitable barrier).
You can choose decorative foils with graining for your uPVC window. The standard color of the uPVC windows is white RAL 9016.
A "warm edge" spacer improves the insulating qualities of the glass.
A groove on the inside frame makes the fitting of casing trims or internal window sills easier. The groove is 10 mm deep and wide.
Choose your desired handle.
For Tilt & Turn products, click on (i) to see the placement of the handle.
For Tilt & Turn balcony doors, please be aware that these are supplied with a single interior handle as a standard. For doors offering a wider range of double-handle options, please visit our Patio and External Doors sections
Select your desired hinge type
Mounting brackets for an easy installation.
Select your desired security level, to change to espagnolette in your door/window. these levels adhere to the european standard (EN 1627:2011). To meet security class RC 1 and RC 2 for windows, a lockable handle must also be selected. To increase security, it is also advisable to choose security glass.
We offer vents in white or grey. Our trickle & tryk vents allow fresh air into the room even if the window or the door is closed, thus ensuring a better indoor climate.
The vent is placed in the top frame of the window/doorOn tilt & turn windows the vent is placed in the top sash and is visible on the outsideWindows with more than one sash, will have 1 vent installed.
Turn your window into a fire escape with a flying mullion. Read more in the info box.
Windows or doors with dimensions exceeding 210 cm in width or height will be delivered using a HIAB. A HIAB fee of £199 per order will be automatically added to the delivery cost during checkout.
Indicative rates:
Change fixed glazed sash to openable (per sash incl. window hooks) 15 £ - remember to add additional price for any other handle options per compartment)Change openable sash to fixed glazed (per sash) 15 £Extra glazing bar without spacer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 12 £Extra glazing bar with spacer, 2-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 17 £Extra glazing bar with spacer, 3-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 23 £Adding af frame to a fixed frame window 50 £Alignment (per order) 35 £Alignment of bars/transom/mullion (per window/door) 35 £Door panel adjustment (per door) 35£Satin glass (per unit) 20 £Repairment kit 15£ + freight 7£Delivery with HIAB 300 £Change of address 70 £
Spare Parts:
Espagnolette 150 £ + 35 £ freightFriction stay 115 £ + 35 £ freightClips for alu cladding 4 £ per piece + freight 15 £
Sku: PK0321

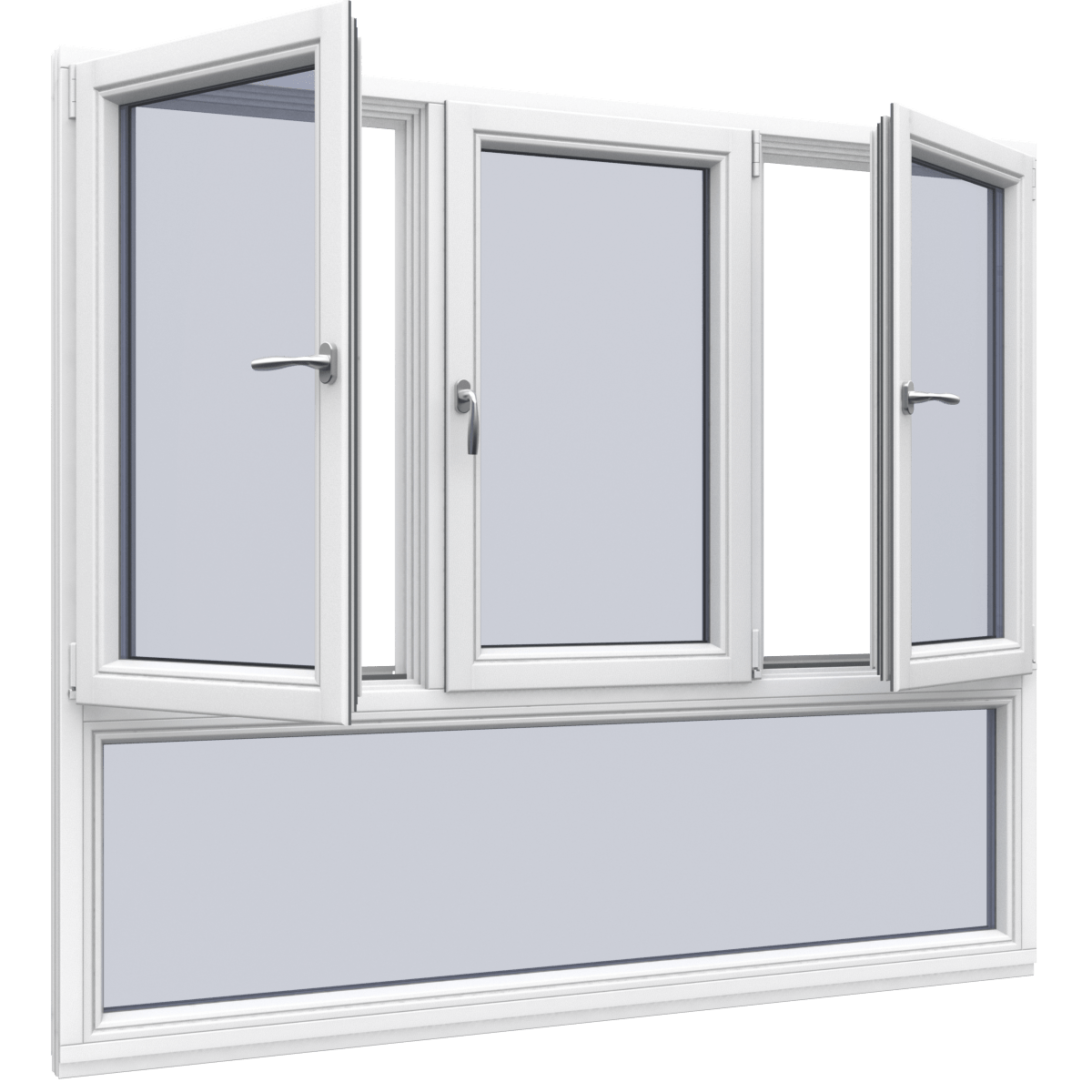

Introducing the Tilt & Turn/Fixed Window - a sleek and innovative solution for those seeking bespoke windows and doors made to measure. Designed with precision and functionality in mind, this window combines the convenience of a tilt and turn mechanism with the elegance of a fixed light structure below.Crafted to perfection, this window is not just a standard fixture, but a customized masterpiece tailored specifically for your space. The 4-light design offers ample natural light to flood your room, creating a bright and inviting atmosphere. The fixed light below adds a touch of sophistication, enhancing the overall aesthetic appeal of your living or working space.Our windows are crafted using high-quality materials, ensuring durability and longevity. With a focus on quality and precision, each window is made to measure, guaranteeing a perfect fit for your unique requirements. Whether you are looking to upgrade your home or office, our Tilt & Turn/Fixed Window is the ideal choice for a seamless blend of style and functionality.The versatility of the tilt and turn function allows for easy cleaning and maintenance, providing a practical solution for modern living. The innovative design not only enhances the aesthetic appeal of your property but also improves energy efficiency, making it an eco-friendly choice for conscious consumers.At SparWindows, we understand the importance of customization and strive to deliver products that meet and exceed your expectations. Trust in our expertise and experience to provide you with windows and doors made to measure that perfectly complement your space. Elevate your interior design with our Tilt & Turn/Fixed Window, a statement piece that seamlessly combines style, functionality, and durability.Experience the difference with SparWindows - your ultimate destination for premium quality windows and doors tailored to your individual needs. Choose excellence, choose sophistication, choose SparWindows for a customized solution that perfectly fits your lifestyle.
