SKU: PK1006
Frame Size: The size in which the window or door is produced. That is, the width x height, from one side of the frame to the other.
Opening Size: The size of the hole in the wall. To arrive at the frame size, 2-3 cm should be subtracted from the opening size, to allow space for the seal for the door or window.
Click here to see how you measure for your windows and doors
Choose the material for your window or door. For most of our products you can choose between pinewood or aluminium clad pinewood. For alu/clad products the exterior of the product has a 1 mm alu cladding.
For tilt & turn elements made of wood & wood/aluminium, triple glazing is possible with a frame depth of 92 mm.
Choose the glazing. The options depend on material and model. Read more in the info box (?).
Choose the type of glass which fits the purpose of the window. You can choose between ordinary clear glass and different types of obscure glass.
Building Regulations guidance (Approved Document K): Standard (non-safety) glass may only be used where the bottom edge of the glazing is more than 800 mm above the finished floor level and not within 300 mm of a door opening. Glazing that is below 800 mm; in a door; or within 300 mm of a door edge and below 1500 mm: these must use toughened or laminated safety glass (or be protected by a suitable barrier).
Choose the opening direction. The opening direction is determined by the side on which the hinges are. Doors can open either inside or outside. If you are unsure which you should choose, you can find further information in the box below.
You can choose decorative foils with graining for your uPVC window. The standard color of the uPVC windows is white RAL 9016.
Choose your glazing bars. The glazing bars are glued on to the glass on the inside and outside of the window, for a modern and energy saving solution. Choose Georgian bars, if you want the glazing bars to sit inside the glass unit. This makes the job of cleaning the windows easier.
Spacers in between the glass panes and glazing bars can be chosen as an add-on.
A "warm edge" spacer improves the insulating qualities of the glass.
Choose your desired handle.
For Tilt & Turn products, click on (i) to see the placement of the handle.
For Tilt & Turn balcony doors, please be aware that these are supplied with a single interior handle as a standard. For doors offering a wider range of double-handle options, please visit our Patio and External Doors sections
Select your desired hinge type
Mounting brackets for an easy installation.
Select your desired security level, to change to espagnolette in your door/window. these levels adhere to the european standard (EN 1627:2011). To meet security class RC 1 and RC 2 for windows, a lockable handle must also be selected. To increase security, it is also advisable to choose security glass.
Our sill connection profile is used when an inner or outer window sill is to be installed. If this profile is used, you may need to subtract the height of the profile from the window dimensions, depending on the installation method.
Windows or doors with dimensions exceeding 210 cm in width or height will be delivered using a HIAB. A HIAB fee of £199 per order will be automatically added to the delivery cost during checkout.
Indicative rates:
Change fixed glazed sash to openable (per sash incl. window hooks) 15 £ - remember to add additional price for any other handle options per compartment)Change openable sash to fixed glazed (per sash) 15 £Extra glazing bar without spacer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 12 £Extra glazing bar with spacer, 2-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 17 £Extra glazing bar with spacer, 3-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 23 £Adding af frame to a fixed frame window 50 £Alignment (per order) 35 £Alignment of bars/transom/mullion (per window/door) 35 £Door panel adjustment (per door) 35£Satin glass (per unit) 20 £Repairment kit 15£ + freight 7£Delivery with HIAB 300 £Change of address 70 £
Spare Parts:
Espagnolette 150 £ + 35 £ freightFriction stay 115 £ + 35 £ freightClips for alu cladding 4 £ per piece + freight 15 £
Sku: PK1006

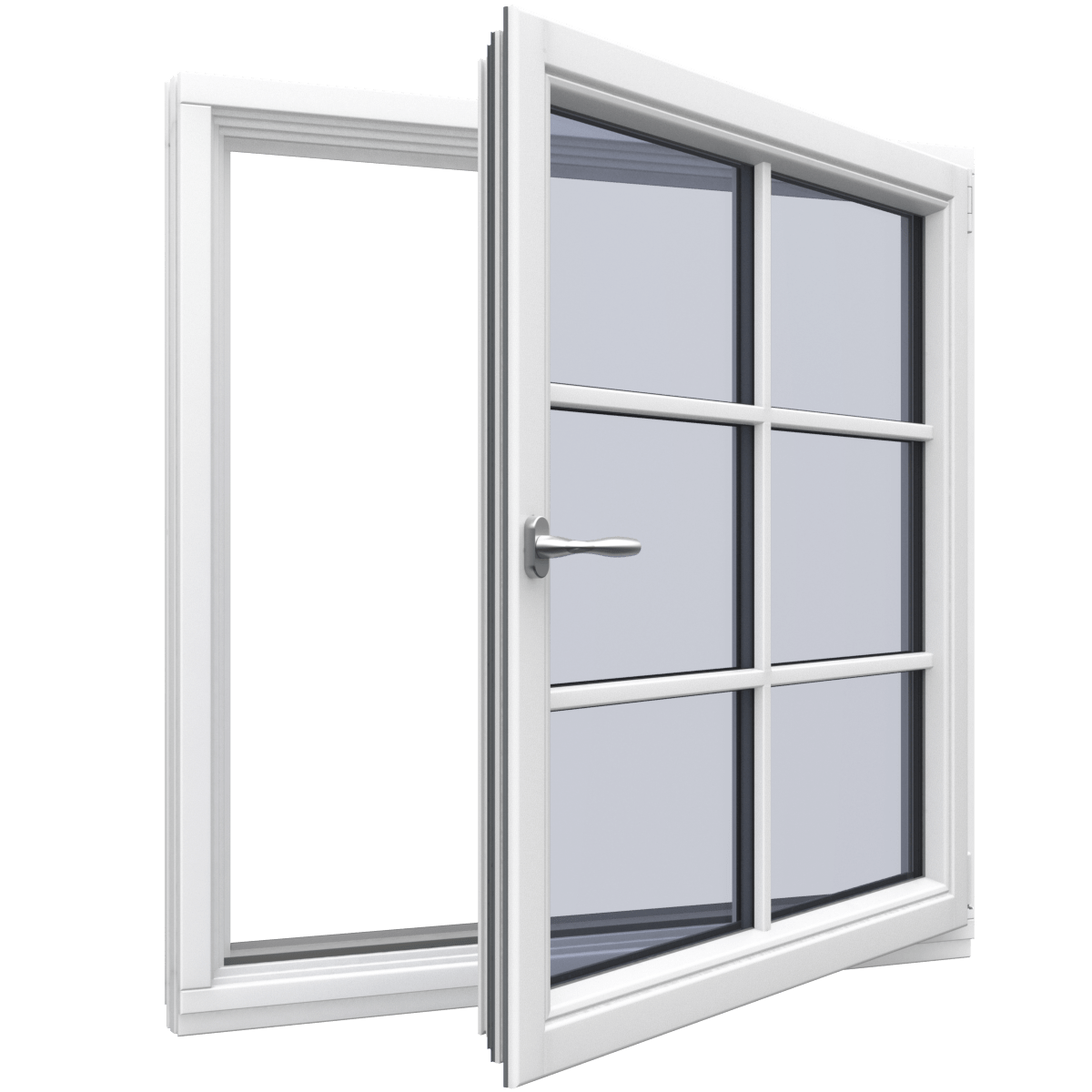

Introducing the Tilt & Turn Window 6 Light, a premium customizable solution from Sparwindows designed to elevate your space with style, functionality, and durability. Crafted with precision and made to measure, this window beautifully combines elegance and performance for your home or office.Our Tilt & Turn Window 6 Light is expertly engineered to provide optimal ventilation and ease of cleaning, making it a practical choice for any room. The innovative tilt function allows for secure ventilation, while the turn feature enables easy access for cleaning and maintenance. Enjoy a seamless transition between fresh air and natural light with this versatile window design.Constructed with high-quality materials, our windows are built to last and withstand the test of time. The 6 Light design adds a touch of sophistication and modernity to any space, enhancing the overall aesthetic appeal of your interior. Whether you prefer a classic look or a contemporary style, our customizable options ensure that your window perfectly complements your décor.At Sparwindows, we understand the importance of creating a personalized touch for your windows and doors. That's why our made to measure service ensures a perfect fit for your unique requirements. Choose from a range of finishes, colors, and hardware options to create a bespoke window that reflects your individual taste and enhances the architectural beauty of your property.Invest in quality craftsmanship and exceptional performance with the Tilt & Turn Window 6 Light from Sparwindows. Transform your living or working environment with a window that not only looks stunning but also delivers on functionality and energy efficiency. Elevate your space with a touch of luxury and sophistication that will leave a lasting impression.Experience the perfect blend of style, versatility, and precision with our Tilt & Turn Window 6 Light. Upgrade your space with a window that is tailored to your exact specifications and designed to exceed your expectations. Trust Sparwindows to deliver excellence in every detail, bringing beauty and functionality to your windows and doors.
