SKU: PK1009
Frame Size: The size in which the window or door is produced. That is, the width x height, from one side of the frame to the other.
Opening Size: The size of the hole in the wall. To arrive at the frame size, 2-3 cm should be subtracted from the opening size, to allow space for the seal for the door or window.
Click here to see how you measure for your windows and doors
Choose the material for your window or door. For most of our products you can choose between pinewood or aluminium clad pinewood. For alu/clad products the exterior of the product has a 1 mm alu cladding.
For tilt & turn elements made of wood & wood/aluminium, triple glazing is possible with a frame depth of 92 mm.
Choose the glazing. The options depend on material and model. Read more in the info box (?). Please note that we temporarily do not offer safety glass.
Choose the type of glass which fits the purpose of the window. You can choose between ordinary clear glass and different types of obscure glass.
Choose the opening direction. The opening direction is determined by the side on which the hinges are. Doors can open either inside or outside. If you are unsure which you should choose, you can find further information in the box below.
You can choose decorative foils with graining for your uPVC window. The standard color of the uPVC windows is white RAL 9016.
Choose your glazing bars. The glazing bars are glued on to the glass on the inside and outside of the window, for a modern and energy saving solution. Choose Georgian bars, if you want the glazing bars to sit inside the glass unit. This makes the job of cleaning the windows easier.
Spacers in between the glass panes and glazing bars can be chosen as an add-on.
A "warm edge" spacer improves the insulating qualities of the glass.
A groove on the inside frame makes the fitting of casing trims or internal window sills easier. The groove is 10 mm deep and wide.
Choose your desired window handle.
For Tilt & Turn products, click on (?) to see the placement of the handle
Select your desired hinge type
Mounting brackets for an easy installation.
Select your desired security level, to change to espagnolette in your door/window. these levels adhere to the european standard (EN 1627:2011). To meet security class RC 1 and RC 2 for windows, a lockable handle must also be selected. To increase security, it is also advisable to choose security glass.
We offer vents in white or grey. Our trickle & tryk vents allow fresh air into the room even if the window or the door is closed, thus ensuring a better indoor climate.
The vent is placed in the top frame of the window/doorOn tilt & turn windows the vent is placed in the top sash and is visible on the outsideWindows with more than one sash, will have 1 vent installed.
We have 10 year warranty on the complete product for our Wood windows and doors, and we have 12 year warranty on the complete product for our Alu-clad wood windows and doors.
Windows or doors within the dimensions 212 cm width and/or 212 cm height or larger will be delivered with HIAB.
For orders with several big windows or doors, only one HIAB-fee will be charged. Please contact us for adjustment of the order amount
Indicative rates:
Change fixed glazed sash to openable (per sash incl. window hooks) 15 £ - remember to add additional price for any other handle options per compartment)Change openable sash to fixed glazed (per sash) 15 £Extra glazing bar without spacer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 12 £Extra glazing bar with spacer, 2-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 17 £Extra glazing bar with spacer, 3-layer (per glazing bar field - Fx. FK0102 has 2 fields. Adding a vertical glazing bar increases the number to 4, so the price should be multiplied by 2 in this case) 23 £Adding af frame to a fixed frame window 50 £Alignment (per order) 35 £Alignment of bars/transom/mullion (per window/door) 35 £Door panel adjustment (per door) 35£Satin glass (per unit) 20 £Repairment kit 15£ + freight 7£Delivery with HIAB 300 £Change of address 70 £
Spare Parts:
Espagnolette 150 £ + 35 £ freightFriction stay 115 £ + 35 £ freightClips for alu cladding 4 £ per piece + freight 15 £
Sku: PK1009

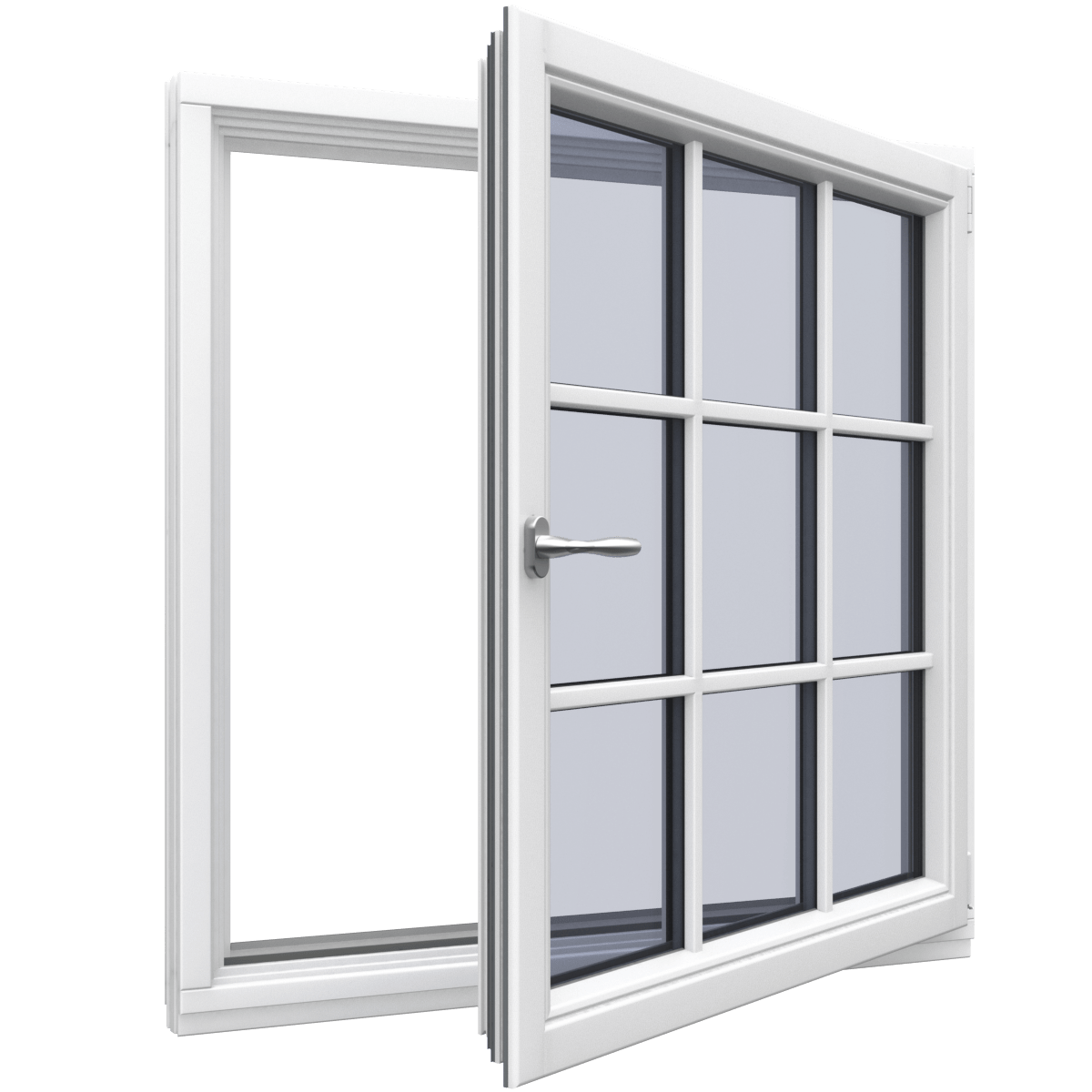

Introducing our customizable Tilt & Turn Window 9 Light, the perfect addition to elevate your living space with style and functionality. Crafted with precision and care, this window is expertly made to measure to seamlessly fit your unique specifications, ensuring a perfect, bespoke fit for your home. Designed to offer both versatility and modern aesthetics, our Tilt & Turn Window 9 Light allows for easy ventilation and cleaning, making it an ideal choice for any room in your home. The innovative tilt function enables you to enjoy a gentle breeze without compromising on security, while the convenient turn feature provides effortless access to the outdoors. Constructed using high-quality materials, our windows are not only durable and long-lasting but also energy-efficient, helping you save on heating and cooling costs year-round. The 9-light design adds a touch of elegance and sophistication to your space, allowing natural light to flood in and brighten up your room with a warm and welcoming ambiance. Whether you are looking to refresh your current windows or embarking on a new construction project, our Tilt & Turn Window 9 Light offers the perfect balance of style, functionality, and durability. With our made-to-measure service, you can customize your windows to perfectly suit your design preferences and requirements, ensuring a seamless integration into your home. Upgrade your living space with our Tilt & Turn Window 9 Light and experience the perfect combination of beauty and performance. Transform your home into a haven of comfort and style with our premium windows designed for the discerning homeowner who values quality and craftsmanship. Choose Sparwindows for your next window upgrade and elevate your space with our bespoke, made-to-measure solutions tailored to your unique needs.
