Alu-clad pine frames?

Double glazing

Framesize:
All dimensions given are always framesize dimensions, i.e. the actual outside dimensions of the frame. All dimensions are stated as width x height.

Windows and doors:

• Classic of Softline profile for frames, cills and mullions

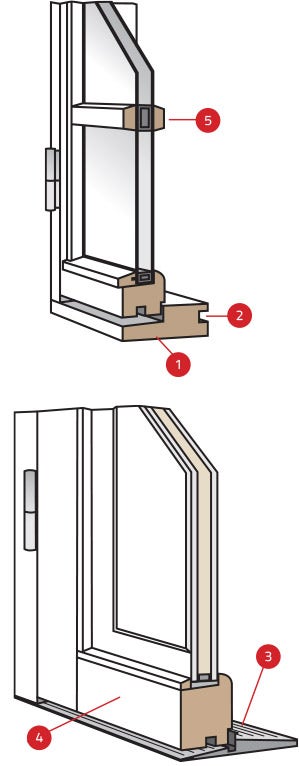

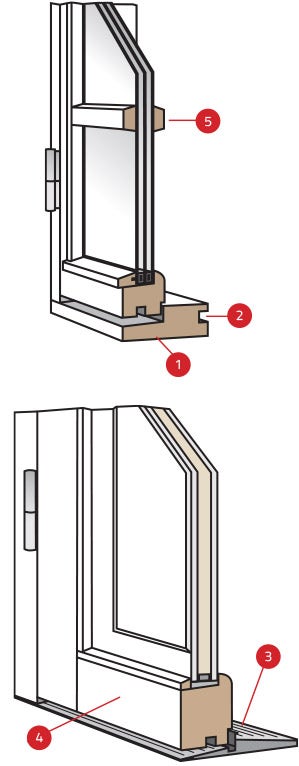

• Sloping cill in frames (1)

Windows:

• 10 mm groove is optional (2)

Doors general:

• Threshold is in fiberglass, hardwood threshold optional (3)
• Single door rail (4)

External doors:

• Assa/fix 3-point lock

Patio doors:

• 3-point lock with handle on the inside


• Handle with cylinder or thumbturn on the outside optional

Specifications windows:

Frame: 44 x 110 mm

Frame depth: 120 mm including aluminium

Window: 55 x 58 mm

Windowdepth 69 mm including aluminium

Standard glazing bar: 25 mm glazing bar (5)

Specifications doors:

Frame: 44 x 110 mm

Frame depth: 120 mm including aluminium

Door: 104 x 58 mm

Doordepth: 69 mm including aluminium

Standard glazing bar: 25 mm glazing bar (5)

Hinges/hardware:
Type: Systemhardware for 12 x 7 mm groove in frame and 17,3 x 3 mm groove in frame
Manufacturer: IPA A/S – J. Petersens Beslagfabriek – Fix

Glass unit:
Interior: self-adhesive EFDM Cellular rubber, 4 x 10 mm
Exterior: EPD; solid rubber treated with ester oil
Manufacturer: Kiso A/S

Sealing strips in windows:
Type: ACF 5559 - 19 mm mounted in the groove
Manufacturer: Primo Danmark A/S
(Doors are supplied with black sealing strips)

Corner joints:
Gluetype: Casol 3344
Manufacturer: Akzo Nobel
Dowel: F16 - 38 mm - acid-resistant and stainless

Pine:
Primary slow-growing Finnish pine wood
Core content: minimum 90%

Paint and surface treatment:

The frames are treated with a coat of primer with impregnating agent and fungicides and a topcoat.

Wood is a natural material, so scratches, texture, gloss and other irregularities such as knots may accur.

Knots:
Knots may be visible, especially in light colours. Knots can be sawn away or filled. Besides that the wood is finger jointes to prevent knots as much as possible. Nevertheless, it is possible that knots or joints are visible. Knots may be randomly distributed across the surface or follow grain patterns in the wood.

Glass standard:
Type: Double glazing
Thickness: 24mm (4-16-4)
U-value: 1,1*

* Different types of glass, soundproof glass or safety glass are optional. The u-value of these types of glass may be different.
