Double glazing
Productsystem:
Nordic Design Plus
Framesize:
All dimensions given are always framesize dimensions, i.e. the actual outside dimensions of the frame. All dimensions are stated as width x height.
Windows and doors:
Doors general:

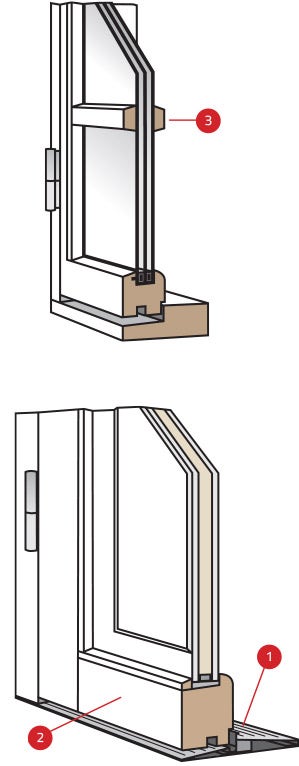

- Threshold is always aluminium (1)
- Single door rail (2)
External doors:
- Assa/fix 4-point lock
- With handle and cylinder
Patio doors:
- 3-point lock with handle on the inside
Specifications windows::
Frame: 42 x 120 mm
Window: 59,5 x 67 mm
Standard glazing bar: 27 mm glazing bar (3)
Specifications doors
Frame: 42 x 120 mm
Door: 105 x 67 mm
Standard glazing bar: 27 mm glazing bar (3)
Hinges/hardware:
Type: Systemhardware for 12 x 7 mm groove in frame and 17,3 x 3 mm groove in frame
Manufacturer: IPA A/S – J. Petersens Beslagfabriek – Fix
Sealing strips in windows:
Type: ACF 5559 - 19 mm mounted in the groove
Manufacturer: Primo Danmark A/SColour: grey
Glass standard:
Type: Double glazing
Thickness: 24mm (4-16-4)
U-value: 1,1*
* Different types of glass, soundproof glass or safety glass are optional. The u-value of these types of glass may be different.
Attention, only for tilt and turn windows:
Productsystem:
Euro 70 or Geneo
Euro 70
Frame: 62 x 70 mm
Window: 75 x 70 mm
Geneo
Frame: 72 x 86 mm
Window: 75 x 86 mm
