Framesize:
All dimensions given are always framesize dimensions, i.e. the actual outside dimensions of the frame. All dimensions are stated as width x height.
Windows and doors:
* when the frame is glazed or lacquered, the glazing beads will be wooden
Windows:
Doors general:
External doors:
Patio doors:
Handle with cylinder or thumbturn on the outside optional

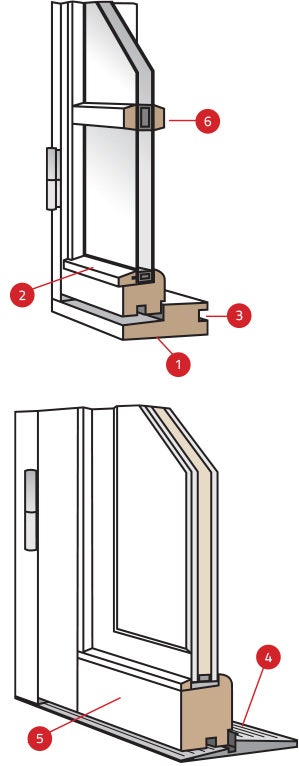

Specifications windows:
Frame: 44 x 110 mm
Window: 55 x 58 mm
Standard glazing bar: 25 mm glazing bar (6)
Specifications doors:
Frame: 44 x 110 mm
Door: 104 x 58 mm
Standaard glazing bar: 25 mm glazing bar (6)
Hinges/hardware:
Type: Systemhardware for 12 x 7 mm groove in frame and 17,3 x 3 mm groove in frame
Manufacturer: IPA A/S – J. Petersens Beslagfabriek – Fix
Glass unit:
Interior: self-adhesive EFDM Cellular rubber, 4 x 10 mm
Exterior: EPD; solid rubber treated with ester oil
Manufacturer: Kiso A/S
Sealing strips in windows:
Type: ACF 5559 - 19 mm mounted in the groove
Manufacturer: Primo Danmark A/S
(Doors are supplied with black sealing strips)
Corner joints:
Gluetype: Casol 3344
Manufacturer: Akzo Nobel
Dowel: F16 - 38 mm - acid-resistant and stainless
Pine:
Primary slow-growing Finnish pine wood
Core content: minimum 90%
Paint and surface treatment:
The frames are treated with a coat of primer with impregnating agent and fungicides and a topcoat.
Wood is a natural material, so scratches, texture, gloss and other irregularities such as knots may accur.
Knots:
Knots may be visible, especially in light colours. Knots can be sawn away or filled. Besides that the wood is finger jointes to prevent knots as much as possible. Nevertheless, it is possible that knots or joints are visible. Knots may be randomly distributed across the surface or follow grain patterns in the wood.
Glas standard:
Type: Double glazing
Thickness: 24mm (4-16-4)
U-value: 1,1*
* Different types of glass, soundproof glass or safety glass are optional. The u-value of these types of glass may be different.
Framesize:
All dimensions given are always framesize dimensions, i.e. the actual outside dimensions of the frame. All dimensions are stated as width x height.
Windows and doors:
* when the frame is glazed or lacquered, the glazing beads will be wooden
Windows:
Doors general:
External doors:
Patio doors:
Handle with cylinder or thumbturn on the outside optional

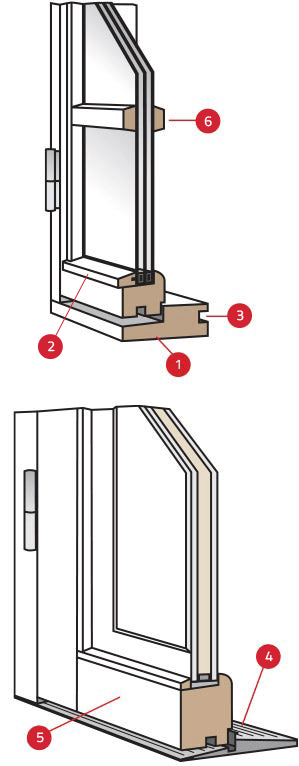

Specifications windows:
Frame: 44 x 116 mm
Window: 53 x 56 mm
Standaard glazing bar: 25 mm glazing bar (6)
Specifications doors:
Frame: 44 x 116 mm
Door: 104 x 56 mm
Standaard glazing bar: 25 mm glazing bar (6)
Hinges/hardware:
Type: Systemhardware for 12 x 7 mm groove in frame and 17,3 x 3 mm groove in frame
Manufacturer: IPA A/S – J. Petersens Beslagfabriek – Fix
Glass unit:
Interior: self-adhesive EFDM Cellular rubber, 4 x 10 mm
Exterior: EPD; solid rubber treated with ester oil
Manufacturer: Kiso A/S
Sealing strips in windows:
Type: ACF 5559 - 19 mm mounted in the groove
Manufacturer: Primo Danmark A/S
(Doors are supplied with black sealing strips)
Corner joints:
Gluetype: Casol 3344
Manufacturer: Akzo Nobel
Dowel: F16 - 38 mm - acid resistant and stainless
Pine:
Primary slow-growing Finnish pine wood
Core content: minimum 90%
Paint and surface treatment:
The frames are treated with a coat of primer with impregnating agent and fungicides and a topcoat.
Wood is a natural material, so scratches, texture, gloss and other irregularities such as knots may accur.
Knots:
Knots may be visible, especially in light colours. Knots can be sawn away or filled. Besides that the wood is finger jointes to prevent knots as much as possible. Nevertheless, it is possible that knots or joints are visible. Knots may be randomly distributed across the surface or follow grain patterns in the wood.
Glass standard:
Type: Triple glazing
Thickness: 36mm (4-12-4-12-4)
U-value: 0,7 *
* Different types of glass, soundproof glass or safety glass are optional. The u-valueof these types of glass may be different.
